RUIJIE

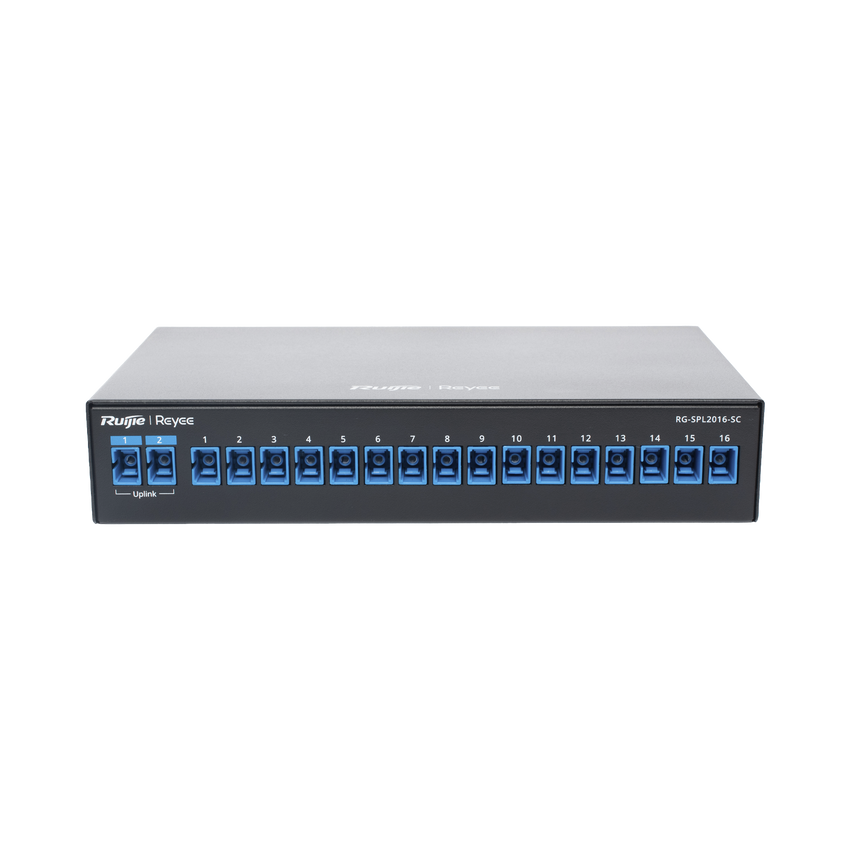

e-Lighten Splitter Pasivo 2/16, Puertos PON SC/UPC, Frecuencias soportadas de 1260nm a 1650nm con hasta 500 mW de Potencia de Entrada
En inventario y listo para ser enviado
Precio de venta
$ 1,228.63
código fiscal: 43223328
Use this text to display some key features of the products
Key Specification
Model
RG-SPL2016-SC
Operating Wavelength
1260 nm to 1650nm
Weight
0.88kg (2.16 lbs.)
Operating Temperature
–40°C to +85°C
(–40°F to +185°F)
(–40°F to +185°F)
Dimensions (W x D x H)
220 mm x 130 mm x 42 mm
(8.66 in. x 5.12 in. x 1.65 in.)
(8.66 in. x 5.12 in. x 1.65 in.)
Temperature-Dependent Loss (dB)
≤ 0.3
Wavelength-Dependent Loss (dB)
0.4 (1310 + 40)
0.4 (1550 + 40)
0.4 (1550 + 40)
Insertion Loss (dB)
≤ 17.7
Port Insertion Loss Uniformity (dB)
≤ 1.5
Return Loss (dB)
≥ 50
Polarization-Dependent Loss (dB)
≤ 0.3
Maximum Input Power (mW)
500
Warranty
3 years
